About This

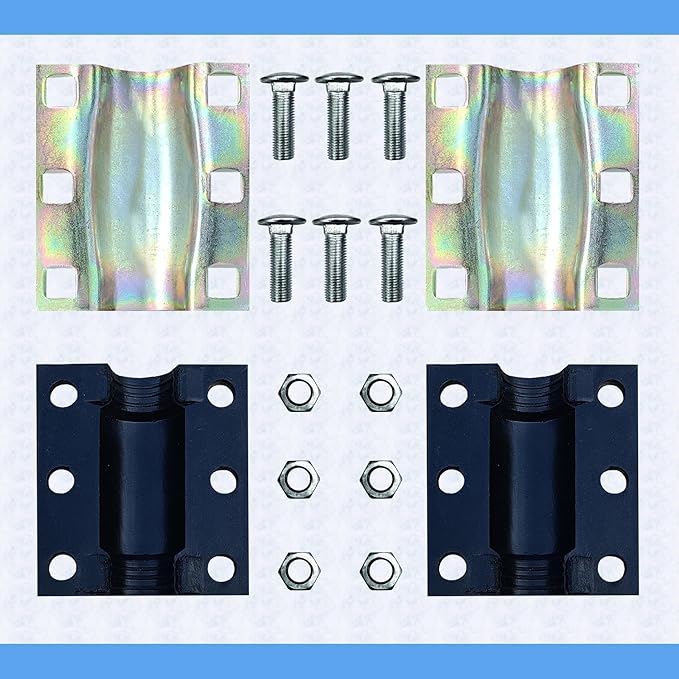

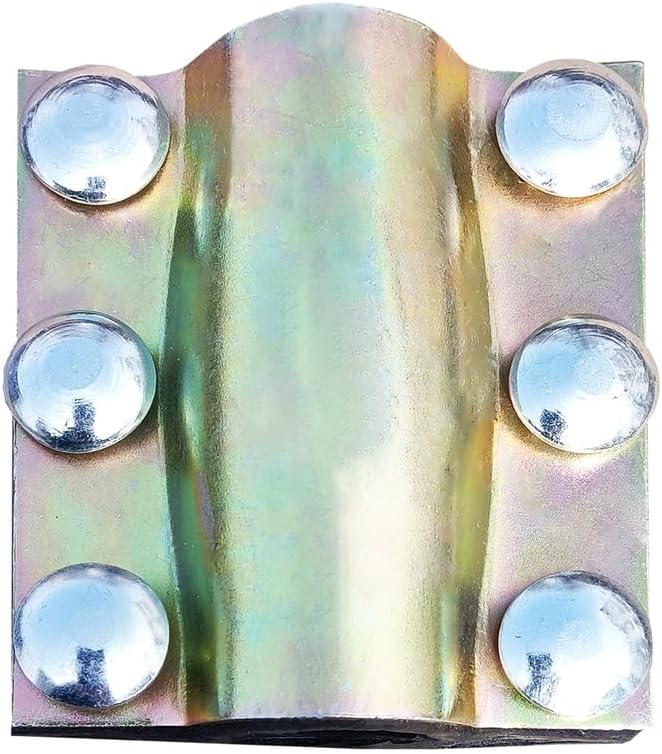

• Th4 repair repair clamp is suitable for pipe with OD of 1.65 inch,The outside diameter of a 1-1/4 inch pipe is not 1.25 inch,please check the details,especially the size of the pipe repair clamp,the size of your pipe and the pipe distance from front to back for installation.Pipe Repair Clamp is composed of 2 steel plates,2 rubber liners for sealing and 6 bolts,the character "DN32" or "32" is marked on its outer shell.Working pressure up to 1Mpa(10 bar).Compared with other pipe repair clamps,it has better sealing effect and higher pressure,and both sides are connected to make the pressure more even.it is a big pipe clamp, please read the description, check the space around your pipe.

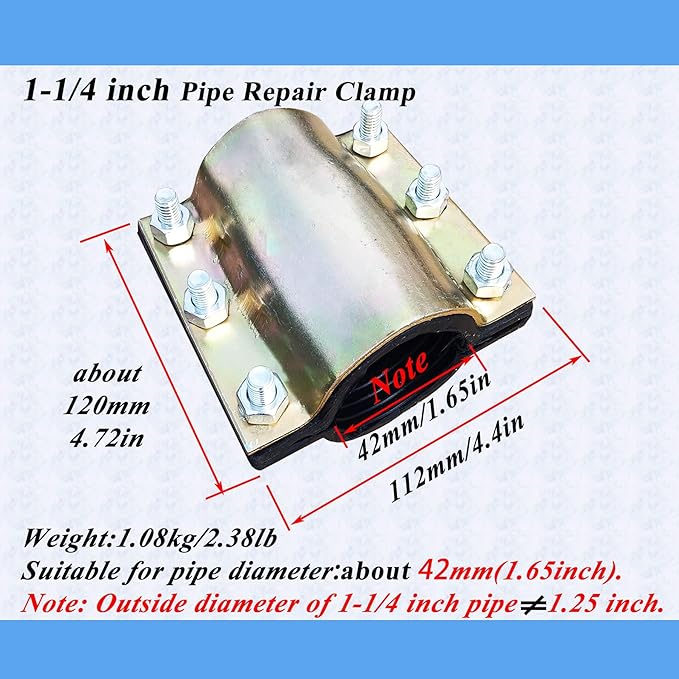

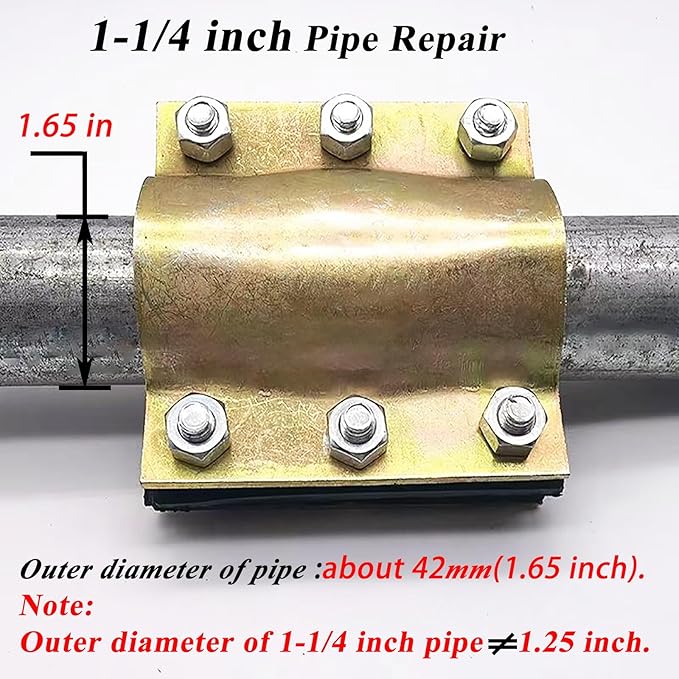

• The outside diameter of a 1-1/4 inch pipe is not 1.25 inch,it is about 1.65 inch(about 42 mm),“1-1/4 inch” is just a standard code.The length of this pipe repair tool is 120mm (4.72in),the maximum width of the pipe rapair clamp is 112mm(4.4 inch),suitable for the code 1-1/4 inch pipe,such as steel pipe,iron pipe,stainless steel pipe,The pipe repair clamp is also suitable for pipes with a diameter difference of 1-2mm from the standard pipe diameter.
• Pipe repairer is suitable for cast iron pipe,cement pipe,PPR pipe,PE pipe,etc.easy and convenient to use,no need to stop the water,no need to cut the water pipe,it saves a lot of labor and time,and quickly achieve the purpose of plugging the leak.
• The pipe repair clamp is suitable for hard and straight pipe.It is not suitable for soft and curved pipe.If the pipe is broken in two parts, it is also not suitable.And the steel plate of the pipe repair tool is specially treated to give it a bronze appearance,better performance and longer service time.

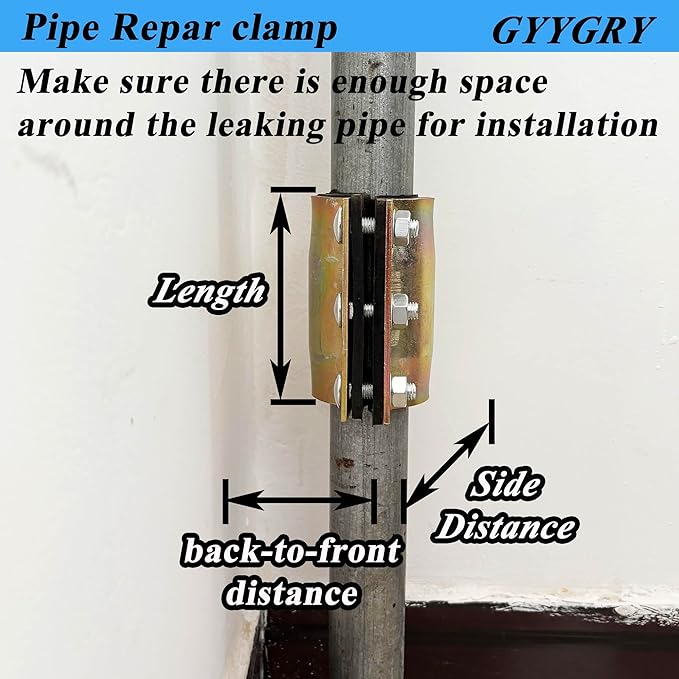

• NOTE:Please check the outer diameter of the leaking pipe, leakage area length and front-to-back distance,make sure you have enough space for the installation,this is very important.And make sure the surface of the pipe repair clamp is clean before using it.In addition,please tighten the bolts in symmetrical order to avoid damage to the rubber lining due to partial load.

Overview

• Material : Metal
• Brand : GYYGRY
• Color : Bronze
• Item Weight : 1.17 Kilograms
• Unit Count : 1.0 Count
• Manufacturer : Together with love
