About This

• The pipe elbow repair clamp is only suitable for welded steel elbow(it has a long radius). the outer diameter of the pipe and elbow are both about 75-76mmmm(3 inch).This is very important,please check it.

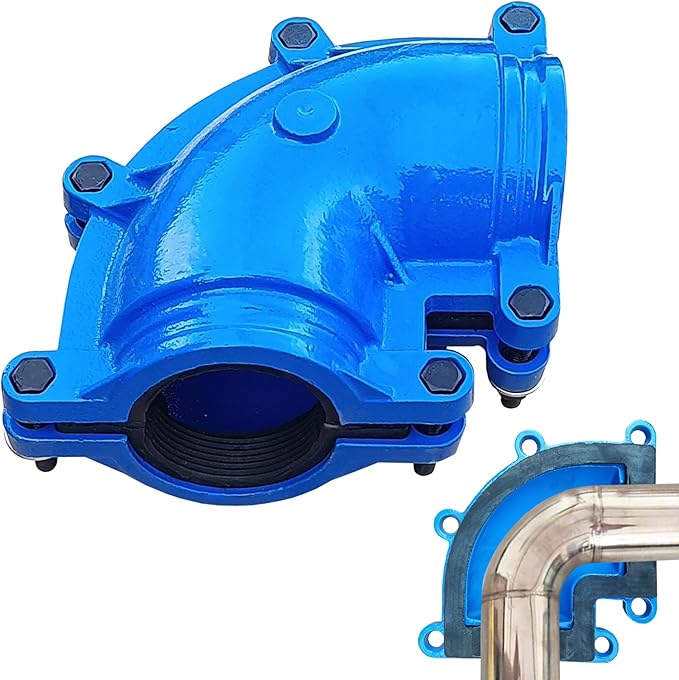

• Pipe Repair Clamp is composed of 2 cast iron plates,2 rubber liners for sealing and 6 bolts.Working pressure up to 1Mpa(10 bar).The cast iron pipe repair clamp can lasts longer and has better sealing effect and higher pressure,and both sides are connected to make the pressure more even.

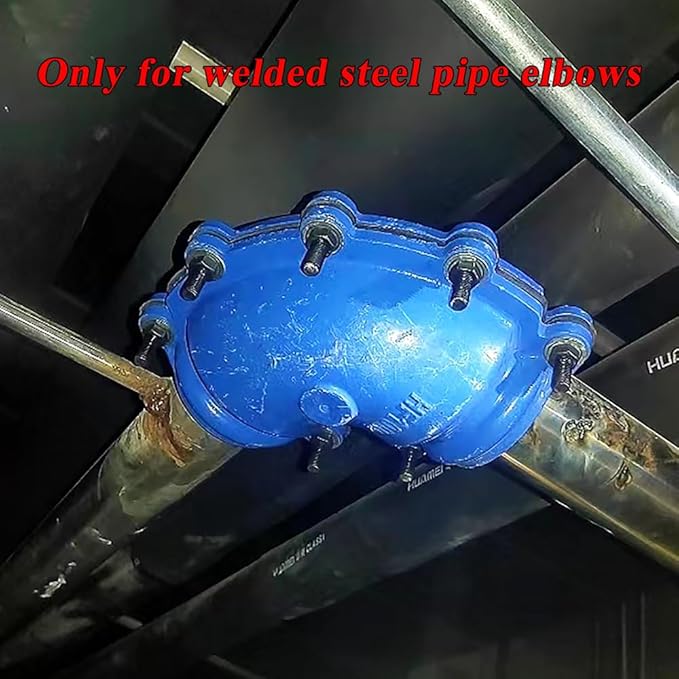

• The Pipe elbow repair clamp is only suitable for welded steel pipe elbow.it is easy and convenient to use,no need to stop the water,no need to cut the water.it saves a lot of labor and time,and quickly achieve the purpose of plugging the leak.

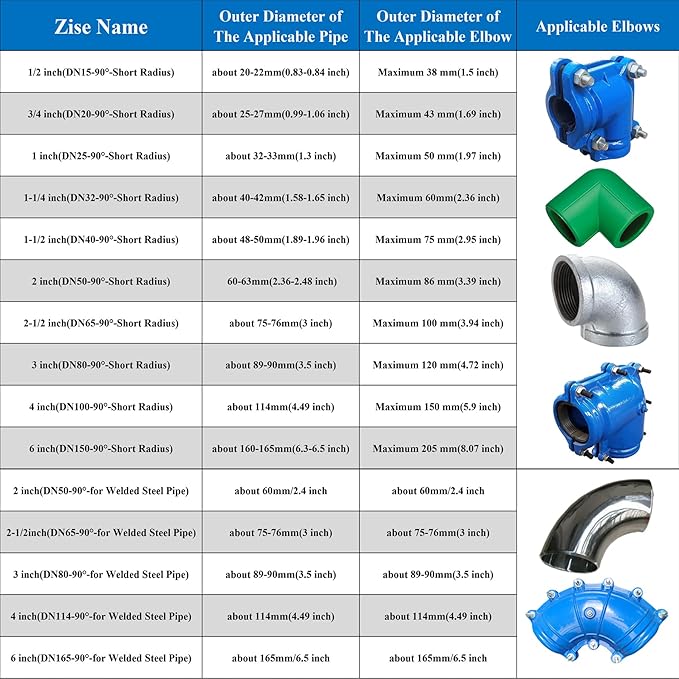

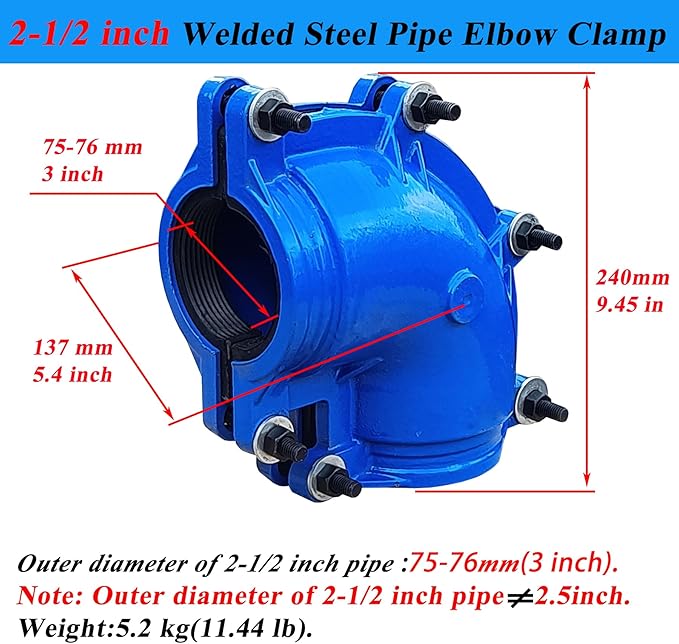

• Please check the outer diameter of your pipes and elbows,The outside diameter of 2-1/2 inch pipe and 2-1/2 inch welded steel elbow are not 2.5 inch,they are both about 75-76mm(3 inch),“2-1/2 inch” is just a standard code.

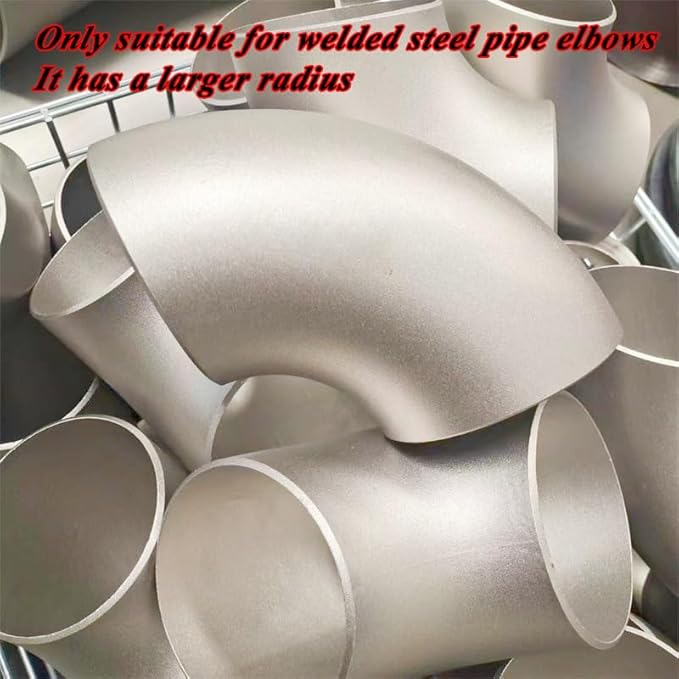

• Note:This pipe repair clamp is only suitable for welded steel pipe elbows,because the welded steel pipe elbow is a long radius elbow which has a larger radius.and Most PPR/PE elbows are short radius elbows.Aan please check the outer diameter of the leaking elbow,leakage area length and front-to-back distance,make sure you have enough space for the installation.

Overview

• Material : Iron
• Brand : GYYGRY
• Color : Blue
• Item Weight : 11.55 Pounds
• Unit Count : 1.0 Count
• Manufacturer : Together with love
